Keyence FS-N41N Digital Fiber Optic Sensor Amplifier
Manufacturer :KEYENCE
Product No. : FS-N41N
-
Description:
The Keyence FS-N41N is a cable-type main unit fiber amplifier belonging to the FS-N40 fiber sensor family. It works cooperatively with various Keyence fiber heads to realize non-contact object detection.
Equipped with multi-grade adjustable response speed ranging from ultra-fast 23 µs to slow 64 ms, it satisfies high-speed conveying detection and stable low-noise measurement scenarios. This unit adopts single NPN open-collector switching output without external input channel. Dual-color digital display and intuitive operation buttons support one-touch automatic calibration.
Multiple anti-mutual interference modes allow dense side-by-side installation of multiple amplifiers. Built-in complete protection circuits improve reliability in complex factory environments. Standard DIN rail mounting structure supports compact arrangement inside control cabinets.
Detail:
| Parameter | Specification |
| Model Number | FS-N41N |
| Brand | Keyence |
| Series | FS-N40 Digital Fiber Optic Amplifier |
| Unit Type | Cable Type, Main Unit |
| Control Output | 1-channel NPN open collector |
| Max Output Load | ≤ 100 mA (standalone) |
| Residual Output Voltage | ≤ 1.4 V (@ ≤10 mA); ≤ 2.0 V (10~100 mA) |
| Light Source | Red four-element LED, 660 nm |
| Response Time Options | 23 µs / 50 µs / 250 µs / 500 µs / 1 ms / 4 ms / 16 ms / 64 ms |
| Supply Voltage | 10 ~ 30 VDC (ripple ≤ ±10% P-P) |
| Power Consumption | ≤ 910 mW (Normal) / ≤ 840 mW (ECO ON) / ≤750 mW (ECO FULL) |
| External Input Channel | None |
| Mutual Interference Suppression | Adjustable according to response speed setting |
| Protection Circuits | Reverse power, output overcurrent, surge protection |
| Parameter | Specification |
| Housing Material | Polycarbonate |
| Mounting Method | 35 mm DIN rail mounting |
| Ambient Operating Temperature | -20 °C ~ +55 °C (non-freezing) |
| Storage Temperature | -25 °C ~ +65 °C |
| Allowable Ambient Light | Incandescent lamp ≤20,000 lx; Sunlight ≤30,000 lx |
| Vibration Resistance | 10–55 Hz, 1.5 mm double amplitude, 2 hours per X/Y/Z axis |
| Shock Resistance | 500 m/s², 3 shocks per X/Y/Z axis |
| Protection Class | IP40 (body, indoor cabinet installation) |
| Cable Type | Integrated outgoing cable |
| Certifications | CE, UL, CSA |
| Compliance | RoHS |
Brand
With the rapid development of industrial automation, KEYENCE, as a leading supplier of sensors and measuring instruments, is constantly developing and manufacturing newer and more reliable products to meet the demands of various manufacturing industries. In addition to high-quality products, the well-trained KEYENCE sales team also offers excellent services, ranging from solving application problems, providing technical sales support to responding quickly to users' requests. KEYENCE has always been committed to supporting a wide range of users and helping them become leaders in their industries. Company Information n nCompany Name: KEYENCE n nDate of Establishment: May 27, 1974 n nRegistered Capital: 2,451 million RMB (30,638 million Japanese yen) n nHead Office and Research Center: 1-3-14, Nakajima, Higashiyodo, Osaka n nNumber of Employees: 3,150 (March 2011) n nBusiness Content: Sensors, Measuring instruments, Image Systems, Control? Research on measuring instruments? Analytical instruments for development
Achievers Automation Limited has more than 14 years experience in the market of Industrial Automation, specialized in reselling factory sealed Probe, Sensor, DCS,isolator barrier, HMI, PLC,Adapter,Profibus connector and cable from Brands .
Below are the TOP BRANDS we handle in the past 14 years:
FAQ of Achievers
Q:Are the Products Genuine OEM Units?
A: These items have been certified by Achievers Automation Limited to be genuine OEM Units obtained through OEM or independent third-party channels.
Q:How will you arrange shipment?
A: We can arrange shipment based on your request. We have cooperated forwader who can arrange shipment via FedEx, DHL,TNT with good price.
Q:What is the warranty of goods?
A: One-year Warranty.
Product Tags:
|
|

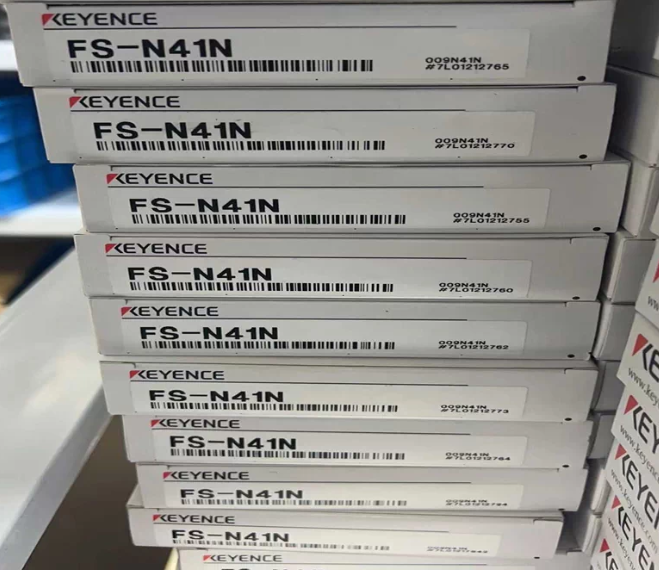

Keyence FS-N41N Digital Fiber Optic Sensor Amplifier Images
|
